    Yokohama Docking Fender Pneumatic Floating Rubber Fender For Shipping

    Ask Lasest Price
    Brand Name : Jerryborg
    Model Number : yokohama pneumatic sling type
    Certification : ISO17357 BV CCS ABS GL LR DVN SGS KR RINA
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000 pieces per year
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    Yokohama Docking Fender Pneumatic Floating Rubber Fender For Shipping

    Yokohama docking fender pneumatic floating rubber fender for shipping

    Pneumatic Fenders are ideal for permanent and semi-permanent port applications and for offshore ship-to-ship transfers. They are manufactured according to ISO17357-1:2014. Fenders are available in diameters ranging from 300 mm to 4,500 mm and lengths ranging from 500 mm to 12,000 mm, as well as special sizes.

    Yokohama Docking Fender Pneumatic Floating Rubber Fender For Shipping

    Advantages of JRB pneumatic fenders:

    A versatile and well proven design. JRB pneumatic fenders are available as sling type or with chain &tyre nets to suit a variety of inshore and offshore applications.

    ISO 17357 certified
    Proportional increase of energy and reaction
    Low hull pressures
    Economical solution
    Easily deflateable to be used in different locations and to be stored on deck of vessels

    Fender Type

    There are two different types of pneumatic fenders: net-type (equipped with a chain & tire net) and sling-type.

    They are available in diameters ranging from 300 mm to 4,500 mm and lengths ranging from 500 mm to 9,000mm.
    Depending on the energy absorption (EA) mandatory for the respective project, diameters can be individually altered to suit.
    According to ISO 17357, high pressure pneumatic fenders have an initial pressure of 50 kPa or 80 kPa to provide the prescribed GEA for each fender size and grade.

    Yokohama Docking Fender Pneumatic Floating Rubber Fender For Shipping

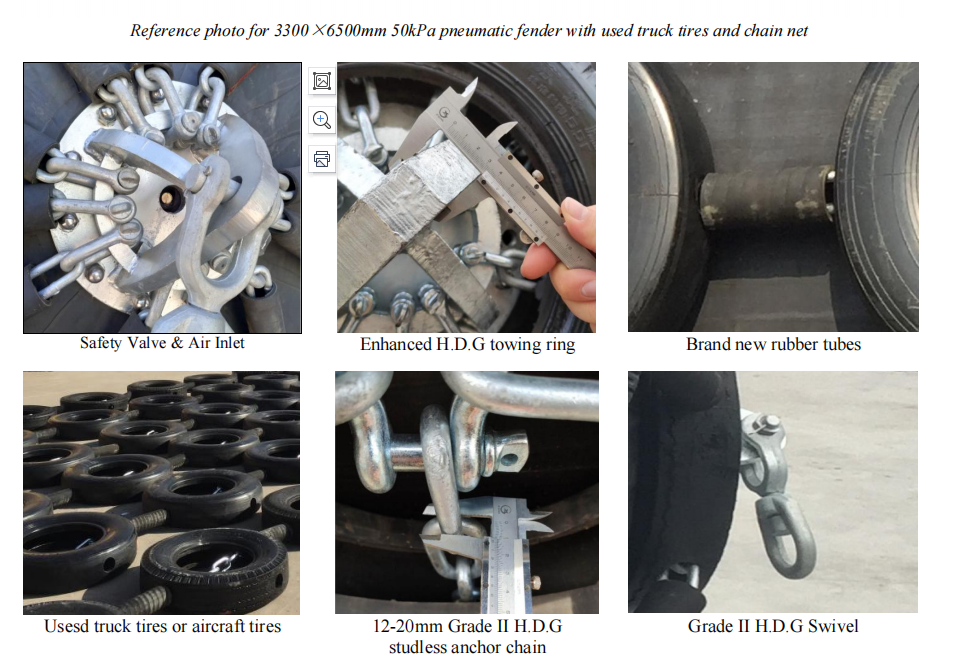

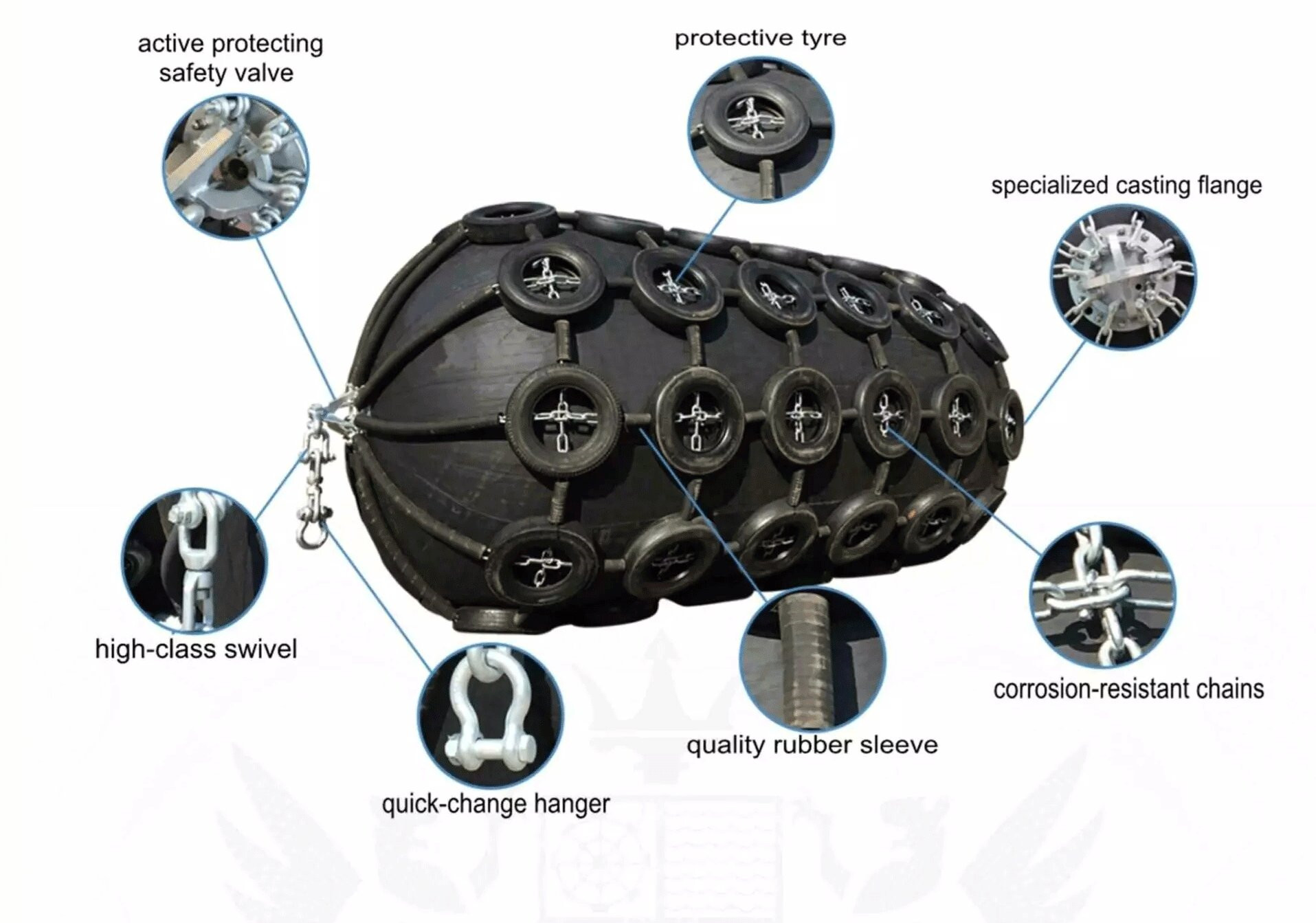

    Detailed Imagine
    Yokohama Docking Fender Pneumatic Floating Rubber Fender For Shipping
    Yokohama Docking Fender Pneumatic Floating Rubber Fender For Shipping

    PNEUMATIC FENDER DIMENSIONS AND PERFORMANCE VALUES

    IP50

    Performance Body Only Fender Weight Chain Net (excl body) Sling Type Pressures Body Thickness Mooring Chain Diameter
    Energy (GEA) Reaction
    (at GEA)
    Pressure (at GEA) Relief Valve Proof Test
    Dia. Length (mm) kJ kN kPa kg kg kg kPa kPa mm mm
    Φ300 x 600L 0.5 24 134 15 - 20 - 200 12 13
    Φ500 x 1000L 6 64 132 24 121 35 - 200 12 16
    Φ600 x 1000L 8 74 126 28 132 39 - 200 12 16
    Φ700 x 1500L 17 137 135 50 165 60 - 200 13 16
    Φ800x 1500L 24 158 132 64 280 72 - 200 14 16
    Φ1000x1500L 33 182 122 80 220 107 - 200 14 16
    Φ1000 x 2000L 46 257 132 97 242 124 - 200 14 16
    Φ1200 x 2000L 64 297 126 144 352 171 - 200 14 16
    Φ1200 x 3000L 109 482 134 250 435 280 - 200 14 16
    Φ1350 x 2500L 104 427 130 220 385 264 - 200 15 16
    Φ1500 x 2500L 125 464 126 243 484 287 - 200 16 19
    Φ1500 x 3000L 156 579 132 275 583 319 - 200 16 19
    Φ1500 x 4000L 230 815 130 330 690 380 - 200 16 19
    Φ1700 x 3000L 195 639 128 319 638 363 - 200 16 19
    Φ1700 x 7200L 516 1621 133 760 N/A 810 - 200 16 22
    Φ2000 x 3000L 260 727 122 403 990 469 - 200 16 22
    Φ2000 x 3500L 314 875 128 445 1056 502 - 200 17 22
    Φ2000 x 4000L 361 1020 125 490 1150 540 - 200 16 22
    Φ2000 x 6000L 611 1631 136 658 1650 720 - 200 16 26
    Φ2500 x 4000L 676 1381 137 992 1364 1188 175 250 18 26
    Φ2500 x 5500L 962 2019 148 1199 2035 1452 175 250 18 32
    Φ2500 x 9100L 1631 3482 140 2150 3467 2230 175 250 18 32
    Φ3000 x 5000L 1136 2021 154 1520 1800 1640 175 250 19 32
    Φ3300 x4500L 1198 1884 130 1606 1881 2024 175 250 20 36
    Φ3300 x 6500L 1850 3015 146 2057 2827 2475 175 250 20 38
    Φ3300 x 10600L 3128 5257 158 2816 5126 3366 175 250 22 48
    Φ4500 x 7000L 3302 3796 133 3740 4290 3880 175 250 24 48
    Φ4500 x 9000L 4847 5747 146 4334 5929 - 175 250 24 50
    Φ4500 x 12000L 6602 7984 154 5269 7689 - 175 205 24 58

    IP80 Performance Body
    Only
    Fender Weight
    Chain Net
    (excl body)
    Sling
    Type
    Pressures Body Thickness Mooring
    Chain
    Diameter
    Energy
    (GEA)
    Reaction
    (at GEA)
    Pressure
    (at GEA)
    Relief
    Valve
    Proof
    Test
    Dia. x Length (mm| kJ kN kPa Kg kg kg kPa kPa mm mm
    Φ300 x 600L 0.6 31 173 17 20 250 13 13
    Φ500 x 1000L 8 85 174 26 121 37 250 13 16
    Φ600 x 1000L 11 98 166 30 132 42 250 13 16
    Φ700 x 1500L 24 180 177 52 165 63 250 14 16
    Φ800 x 1500L 31 204 180 71 280 83 250 15 16
    Φ1000 x 1500L 45 239 160 84 220 111 250 15 16
    Φ1000 x 2000L 64 338 174 101 242 129 250 15 16
    Φ1200 x 2000L 89 390 166 149 352 176 250 15 16
    Φ1200 x 3000L 140 623 185 275 435 310 250 16 16
    Φ1350 x 2500L 144 561 170 226 385 270 250 17 16
    Φ1500 * 2500L 174 610 166 268 484 312 250 17 19
    Φ1500 x 3000L 218 761 174 339 583 355 250 17 20
    Φ1500 x 4000L 296 1053 176 363 690 378 250 17 20
    Φ1700 x 3000L 272 840 168 348 638 392 250 17 20
    Φ1700 x 7200L 668 2096 170 795 N/A 845 250 18 22
    Φ2000 x 3000L 363 955 160 413 990 479 250 19 22
    Φ2000 x 3500L 438 1150 168 454 1056 520 250 19 24
    Φ2000 x 4000L 520 1380 173 505 1150 535 250 19 24
    Φ2000 x 6000L 791 2109 170 724 1650 810 230 300 18 28
    Φ2500 x 4000L 944 1815 180 1111 1364 1309 230 300 20 30
    Φ2500 x 5500L 1343 2653 195 1353 2035 1606 230 300 20 36
    Φ2500 x 9100L 2293 4505 199 2360 3467 2450 230 300 20 38
    Φ3000 x 5000L 1593 2608 185 1670 1800 1850 230 300 21 34
    Φ3300 x 4500L 1673 2476 171 1892 1881 2299 230 300 22 34
    Φ3300 x 6500L 2583 3961 191 2420 2827 2827 230 300 22 42
    Φ3300 x 10600L 4366 6907 208 3333 5126 3872 230 300 23 54
    Φ4500 x 7000L 4608 4988 174 4136 4301 4350 230 300 26 54
    Φ4500 x 9000L 6766 7551 192 4818 5929 230 300 26 58
    Φ4500 x 12000L 9218 14490 202 5863 7689 230 300 26 58

    Guaranteed Energy Absorption (GEA) is at nominal deflection of 60%. Reaction tolerance is ±10%.

    Ask Jerryborg for details of custom sizes and other properties of JRB Pneumatic Fenders.


    Yokohama Docking Fender Pneumatic Floating Rubber Fender For Shipping

    Applications

    In ports with extreme tidal variations
    Ship-to-ship operations
    Oil & Gas (typically FSRU)
    Temporary berthing

    Yokohama Docking Fender Pneumatic Floating Rubber Fender For Shipping

    Shipping Cost Minimization
    In order to minimize the shipping cost of Yokohama Pneumatic Rubber Fenders, the fenders are usually packed and shipped in containers or on pallets in vacuumed and folded down state.
