ISO17357 marine safety yokohama hydro submarine pneumatic fenders

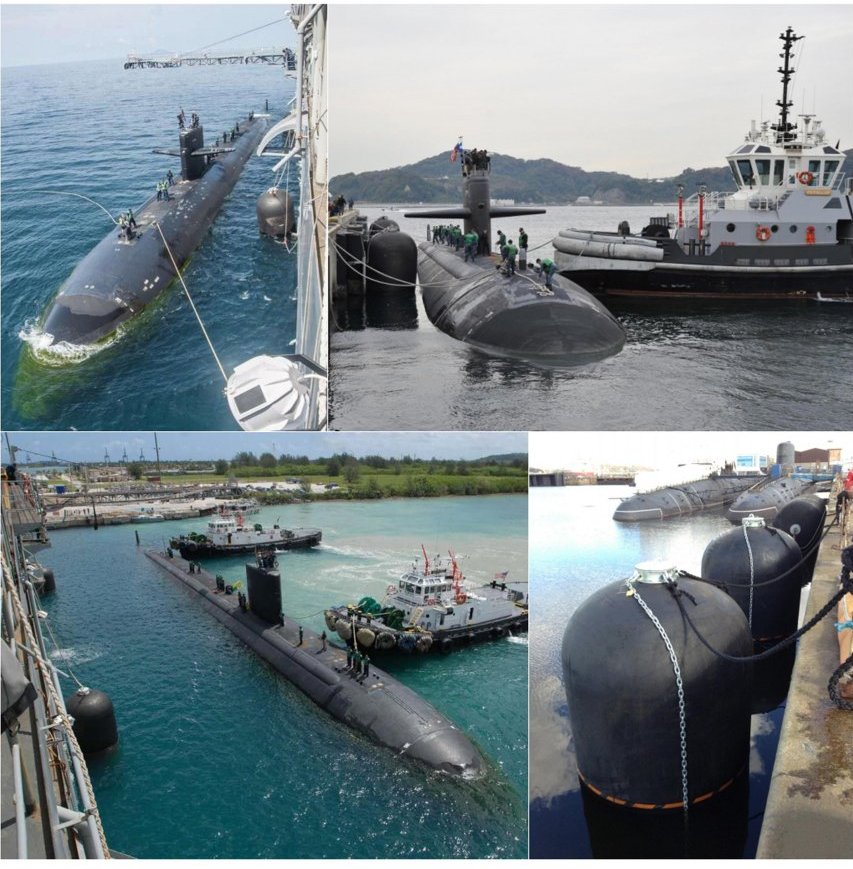

Hydro-pneumatic Fenders are best employed for berthing Submarines. One of the most important criteria for using Hydro-pneumatic fender is High Energy absorption Capacity and low reaction force, which is vital factor for submarine applications.

The Hydro-pneumatic fender provides a better contact area vertically, which cannot be achieved through any other fender system and hence makes it, the most ideal for submarine use.

The Hydropneumatic fenders can be installed on most Quay structures and come in a range of sizes to suit the application and a range of vessels.

Advantages of JRB pneumatic fenders:

Fender Characteristics

► Cost effective replacement for deep water catamarans

► Easily moved to provide flexibility in berthing

► Easily transported to provide emergency berthing facilities

► Maintenance requirement almost non-existent

► Unaffected by extreme climatic conditions

​More sizes

SIZE * D	INITERNAL PRESSURE	BODY WEIGHT	SAFETY VALVE PRESSURE SETTING	TESTING PRESSURE	INITERNAL PRESSURE	BODY WEIGHT	SAFETY VALVE PRESSURE SETTING	TESTING PRESSURE
mm(D) * mm(L)	kpa	kg	kpa	kpa	kpa	kg	kpa	kpa
1700 *7200	50	940		200	80	1140		250
2000 * 6000	50	930		200	80	1100		250
2500 * 5500	50	1300	175	250	80	1460	230	300
2500 * 7700	50	1854	175	250	80	2030	230	300
2500 * 9100	50	2300	175	250	80	2480	230	300
3300 * 6500	50	2200	175	250	80	2520	230	300
3300 * 8600	50	3140	175	250	80	3350	230	300
3300 * 10600	50	4200	175	250	80	4700	230	300
4500 * 9000	50	5000	175	250	80	5500	230	300
4500 * 11000	50	5600	175	250	80	6100	230	300
4500 * 12000	50	7000	175	250	80	7600	230	300

​Please contact us directly about technicel questions on submarine fenders.

Notes: 1. Weight of the fender body and net torrence ± 10%

2. Reaction force torrence ± 10%

Yokohama Pneumatic Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation. Operational experience over a long period of time attests to its high safety and reliability, and hydraulic pressure tests have proven the strength to be suitable. Furthermore, large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure. The figure below shows data obtained from many destructive pressure tests at various percentage compressions. Such data are used to establish a basic minimum endurable pressure (MEP) curve for pneumatic rubber fenders.

Adaptable to the Tide

Yokohama Pneumatic Rubber Fenders basically float on the water in an unrestricted vertical plane corresponding to the tidal range and ship's vertical movement. This means that energy absorption always takes place at the most suitable position, and that only one fender is required per dolphin.

Applications

Qingdao Jerryborg Marine Machinery Co., Ltd is a leading international marine products manufacturer & distributor with 15+ years of rich experience in production of marine docking & mooring systems. Jerryborg Marine Machinery Co., Ltd, headquartered in Qingdao, China, is committed to marine fendering and floating products production, R&D and sales. The Jerryborg Marine is equipped with production facilities for high-quality rubber products, ship launching airbags and foam fenders, Yokohama type pneumatic rubber fender, navigation buoys, steel/EVA mooring buoy, distributing mooring ropes, steel wire ropes, marine hardware like anchor chains, anchors, etc.

The Jerryborg serves as a strategic partner of Marine Fender & Mooring Industry, providing excellent products as well as professional and technical expertise. While our true role is designer and manufacturer for marine docking & mooring systems with accessories. We value all customers as important parts of our team, supporting them like close partners. we are with them at each step of the project, from technical consulting, engineering customized fendering and mooring solutions to the manufacturing and installation of marine docking & mooring systems. Our rich experience has earned a good reputation as a dependable partner in the waterways markets, harbors, international ports, etc.

Regional Distributors

The Jerryborg headquarters in Qingdao has an experienced team handling projects and orders from North American region, Asian-Pacific region, European region and EMEIA. The regional distributors promote the local contact with customers. Our cooperation with regional distributors is based on mutual trust, loyalty, long and close working partnership. During our annual meeting all our distributors meet with the service teams to keep informed on industry developments and to catch up with our highly internal quality standards as the best counselors for our customers. Direct contact between all our employees and distributors plays a significant role in our company’s development.

Manufacturing Facilities

Providing safe & critical marine fender systems and mooring systems, the Jerryborg has a strong focus on manufacturing all major spare parts in-house, guaranteeing “higher than highest” quality and reliability at their own production machines. Our rubber fender manufacturing machines in Qingdao has an extensively proven track record of manufacturing high quality rubber fender products & mooring products.

All staff and partners who are involved in the production of marine products are well qualified, frequently trained and further educated to keep up with the latest developments in their specific job.rubber rolling mill, fender press test machine, rubber vulcanizer.

Jerryborg's Focus

It is the mission of what our products are meant to do——creating the value of protection and safety. We offer the full range of marine fender products and marine mooring buoy products, from simple rubber products to highly engineering systems, as well as spare parts and fixings. A strong focus lies on internal manufacturing to offer high-level fenders & buoys at reasonable prices.

our fender systems are designed with an eye for the big picture to make sure our products qualified for the task, while paying attention to every little detail. Engineering advantages means that our partners can be confident in expecting the best from us in all areas.
