    Yokohama Inflatable Pneumatic Fender Floating 50 Kpa Docking Fender

    Ask Lasest Price
    Brand Name : Jerryborg
    Model Number : yokohama pneumatic fender type
    Certification : ISO17357 BV CCS ABS GL LR DVN SGS KR RINA
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000 pieces per year
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    Yokohama Inflatable Pneumatic Fender Floating 50 Kpa Docking Fender

    Yokohama inflatable pneumatic fender floating 50 kpa docking fender


    Pneumatic Fenders are supplied with two different inside pressure levels to cover a wide performance range. They are manufactured according to ISO 17357-1:2014.


    Pneumatic Fenders are available in diameters ranging from 500 mm to 4,500 mm and lengths ranging from 1000 mm to 12,000 mm, as well as special sizes.
    All sizes are available as sling-type or with a heavy duty chain & tire net.



    Advantages of yokohama pneumatic fenders:


    A versatile and well proven design. JRB pneumatic fenders are available as sling type or with chain &tyre nets to suit a variety of inshore and offshore applications.

    • 1. Proportional increase of energy and reaction
    • 2. Low hull pressure
    • 3. Economical solution
    • 4. Easily deflateable to be used in different location and to be stored on deck of vessels
    • 5. Built as per ISO 17357-1:2014

    Pneumatic Fender Type


    BASIC CONSTRUCTION
    1. Outer Rubber
    2. Synthetic-tire-cord Layer
    3. Inner Rubber
    4. Bead ring and flange opening
    DETAILED IMAGINE

    PNEUMATIC FENDER DIMENSIONS AND PERFORMANCE VALUES


    Pneumatic 50 (Metric)


    Nominal Size Diameter x LengthInitial Internal PressureGuaranteed Energy Absorption (GEA)Reaction Force at GEAHull Pressure at GEASafety Valve Setting pressureTesting PressureWeight of Net Type (Type I)Weight of Sling Type (Type n)
    Approx. Fender Body WeightApprox. Weight of Net
    ERPChain NetWire NetSynthetic Fiber Net
    (mm x mm)(kPa)(kNm)(kN)(kPa)(kPa)(kPa)(kg)(kg)(kg)(kg)(kg)
    500 x 100050664132-20022110302028
    600 x 100050874126-20025120302232
    700 x 15005017137135-20045150403751
    1000 x 15005032182122-20073200805189
    1000 x 20005045257132-2008822014057104
    1200 x 20005063297126-20013132019068147
    1350 x 250050102427130-200200350200-229
    1500 x 300050153579132-200250530350-279
    1700 x 300050191639128-200290580440-320
    2000 x 350050308875128-200405960640-459
    2500 x 40005066313811371752509021240910-1080
    2500 x 5500509432019148175250109018501160-1320
    3300 x 45005011751884130175250146017101270-1800
    3300 x 65005018143015146175250187025701910-2180
    3300 x 106005030675257158175250256046603300-3060
    4500 x 90005047525747146175250394053903520-4560
    4500 x 120005064737984154175250479069905190--

    Pneumatic 80 (Metric)​


    Nominal Size Diameter x LengthInitial Internal PressureGuaranteed Energy Absorption (GEA)Reaction Force at GEAHull Pressure at GEASafety Valve Setting pressureTesting PressureWeight of Net Type (Type I)Weight of Sling Type (Typen)
    Approx. Fender Body WeightApprox. Weight of Net
    ERPChain NetWire NetSynthetic Fiber Net
    (mm x mm)(kPa)(kNm)(kN)(kPa)(kPa)(kPa)(kg)(kg)(kg)(kg)(kg)
    500 x 100080885174-25024110302030
    600 x 1000801198166-25027120302234
    700 x 15008024180177-25047150403753
    1000 x 15008045239160-25076200805192
    1000 x 20008063338174-2509222014057108
    1200 x 20008088390166-25013532019068151
    1350 x 250080142561170-250205350200-234
    1500 x 300080214761174-250277530350-306
    1700 x 300080267840168-250316580440-346
    2000 x 3500804301150168-250413970690-467
    2500 x 400080925181518023030010101250910-1190
    2500 x 55008013172653195230300123018601170-1460
    3300 x 45008016402476171230300172017201280-2050
    3300 x 65008025323961191230300220025801990-2530
    3300 x 106008042816907208230300303046603300-3520
    4500 x 90008066337551192230300438054403580--
    4500 x 1200080903710490202230300533070305230--

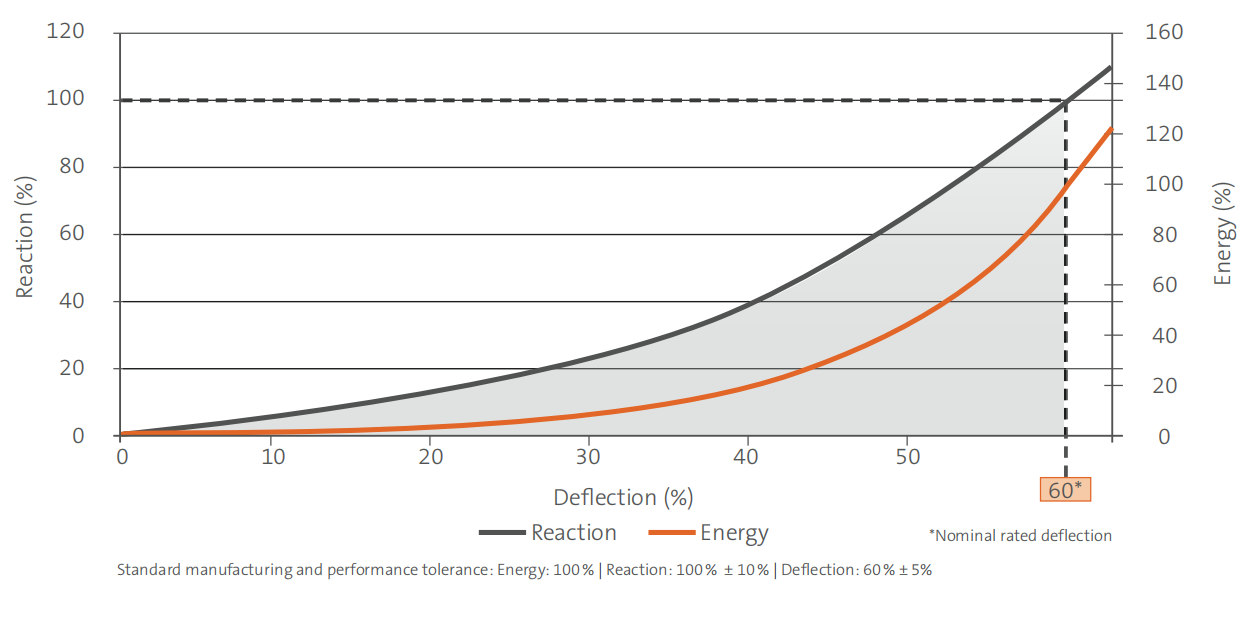

    GENERIC PERFORMANCE CURVE PNEUMATIC FENDERS

    Applications Cases


    In ports with extreme tidal variations
    Ship-to-ship operations
    Oil & Gas (typically FSRU)
    Temporary berthing

    Shipping Method
    In order to minimize the shipping cost of Yokohama Pneumatic Rubber Fenders, the fenders are usually packed and shipped in containers or on pallets in vacuumed and folded down state.
