Marine Rubber Airbag Natural Rubber Anti Wear Ship Launching Marine Airbags

Anti-wear Marine Airbag Natural Rubber Ship Launching And Lifting Airbag Made In China

Anti-wear Marine Airbag Description

Jeryborg marine airbags are the system of choice for reliable, controllable buoyancy. They are ideal for installing buoyancy on pipeline buoys, beach towing, and river crossings. In addition, our marine airbags can also reduce the draught of ships and platforms within a limited depth of water, and can also be used as rescue buoys for temporary bridges and piers. People can use marine airbags to rescue sunken ships and rescue pontoons and docks.

Jerryborg marine airbag is a closed cylindrical buoyancy unit. The marine airbags we build have a high tensile strength rubber layer, a multi-layer heavy-duty synthetic tire cord layer, and a firmly vulcanized inner rubber layer.

Anti-wear Marine Airbag Advantages

1. long lifespan

2. saving investment costs

3. movable and reusable

4. saving labor and time

Anti-wear Marine Airbag Application

Ship launching and upgrading
Ship salvage
Weight moving & lifting
Caissons lifting and floating
Pipeline blocking

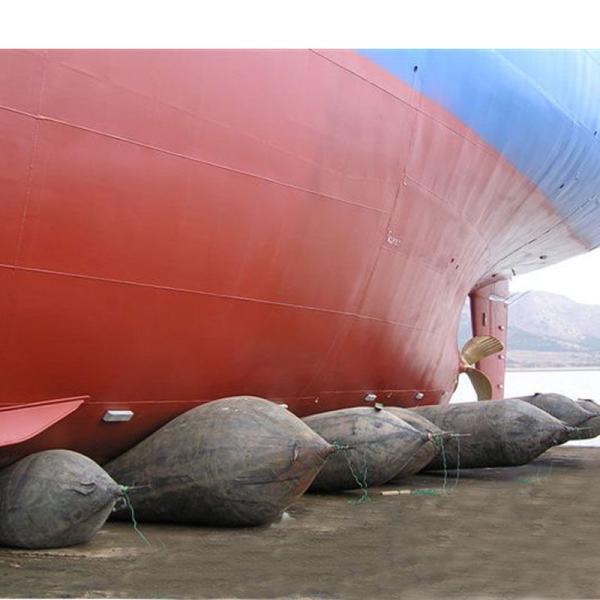

ship launching airbag

Constructions Of Anti-wear Marine Airbag

Structure: outer rubber layer, inner rubber layer, synthetic tire cord layer
Cord layers: 4-10 layers
Shape: a cylindrical body, two heads
Accessories: pressure gauge, pull ring, three-way piece, ball valve, connecting pipe

ship launching airbag

Anti-wear Marine Airbag Specification

Series	Model	Diameter(m)	Working Pressure(Mpa)	Working Height(m)			Beating Capacity(Ton/m)
Series	Model	Diameter(m)	Working Pressure(Mpa)	0.4D	0.5D	0.6D	0.4D	0.5D	0.6D
S1	S10	0.8	0.20	0.32	0.40	0.48	15.1	12.6	10.0
		1	0.16	0.40	0.50	0.60	15.1	12.6	10.0
		1.2	0.14	0.48	0.60	0.72	15.8	13.2	10.6
		1.5	0.11	0.60	0.75	0.90	15.5	13.0	10.4
	S11	0.8	0.19	0.32	0.40	0.48	14.3	11.9	9.5
		1	0.15	0.40	0.50	0.60	14.1	11.8	9.4
		1.2	0.13	0.48	0.60	0.72	14.7	12.2	9.8
		1.5	0.10	0.60	0.75	0.90	14.1	11.8	9.4
	S12	0.8	0.24	0.32	0.40	0.48	18.1	15.1	12.1
		1	0.19	0.40	0.50	0.60	17.9	14.9	11.9
		1.2	0.16	0.48	0.60	0.72	18.1	15.1	12.1
		1.5	0.13	0.60	0.75	0.90	18.4	15.3	12.2
		1.8	0.10	0.72	0.90	1.08	17.0	14.1	11.3
S2	S20	1	0.24	0.40	0.50	0.60	22.6	18.8	15.1
		1.2	0.20	0.48	0.60	0.72	22.6	18.8	15.1
		1.5	0.16	0.60	0.75	0.90	22.6	18.8	15.1
		1.8	0.13	0.72	0.90	1.08	22.0	18.4	14.7
		2	0.12	0.80	1.00	1.20	22.6	18.8	15.1
	S21	1	0.27	0.40	0.50	0.60	25.4	21.2	17.0
		1.2	0.23	0.48	0.60	0.72	26.0	21.7	17.3
		1.5	0.18	0.60	0.75	0.90	25.4	21.2	17.0
		1.8	0.15	0.72	0.90	1.08	25.4	21.2	17.0
		2	0.14	0.80	1.00	1.20	26.4	22.0	17.6
	S22	1	0.31	0.40	0.50	0.60	29.2	24.3	19.5
		1.2	0.26	0.48	0.60	0.72	29.4	24..5	19.6
		1.5	0.20	0.60	0.75	0.90	28.3	23.6	18.8
		1.8	0.17	0.72	0.90	1.08	28.8	24.0	19.2
		2	0.15	0.80	1.00	1.20	28.3	23.6	18.8
		2.5	0.12	1.00	1.25	1.50	28.3	23.6	18.8
S3	S30	1	0.35	0.40	0.50	0.60	33.0	27.5	22.0
		1.2	0.29	0.48	0.60	0.72	32.8	27.3	21.9
		1.5	0.23	0.60	0.75	0.90	32.5	27.1	21.7
		1.8	0.19	0.72	0.90	1.08	32.2	26.8	21.5
		2	0.17	0.80	1.00	1.20	32.0	26.7	21.4
		2.5	0.14	1.00	1.25	1.50	33.0	27.5	22.0

For further information free to contact us.
