Boat Launching Rubber Airbag Natural Rubber Roller Bags With BV Certificate

Ask Lasest Price
Brand Name :	Jerryborg
Model Number :	*1.2m15m**
Certification :	ISO17357 CCS BV
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 pieces per year
Delivery Time :	10-20 work days
Price :	negotiable

Add to Cart

Product Details
Company Profile

Boat Launching Rubber Airbag Natural Rubber Roller Bags With BV Certificate

Boat Launching Rubber Airbag Natural Rubber Roller Bags With BV Certificate

Boat Launching Rubber Airbag Description

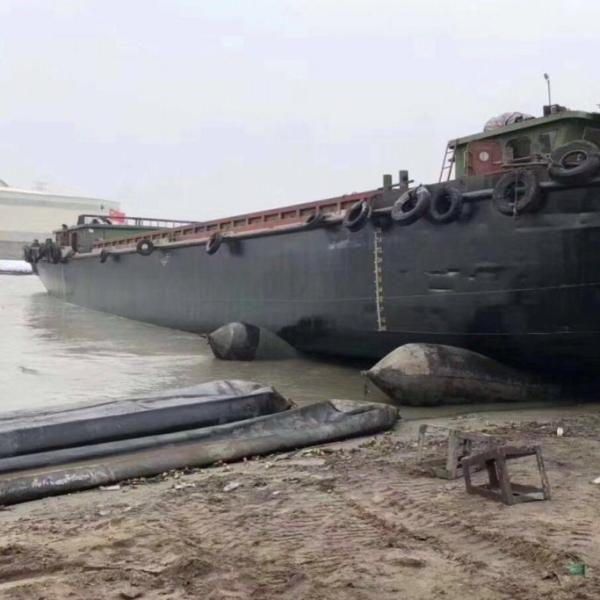

Boat launching rubber airbag, also named roller bags or ship launching rubber balloon, was first invented for ship launching in 1981 in Jinan city of Shandong Province. Boat launching rubber airbags are accepted by more and more shipyards worldwide due to its’ advantage of saving labor cost and time, besides it’s easy to install and replace. Boat launching rubber airbags are widely used in ship launching, ship salvage, and other heavy weights lifting and moving.

Boat launching rubber airbags are composed of inner reinforced synthetic-tire-cord layers and outer rubber layers in the shape of cylindrical. Which is capable of high capacity against compression and twisting. Jerryborg supplies various sizes of boat launching rubber airbags depending on the customer’s request.

Constructions Of Boat Launching Rubber Airbag

Structure: outer rubber layer, inner rubber layer, synthetic tire cord layer
Cord layers: 4-10 layers
Shape: a cylindrical body, two heads
Accessories: pressure gauge, pull ring, three-way piece, ball valve, connecting pipe

marine airbag

Boat Launching Rubber Airbag Advantages

Saving labor cost and time
High capacity against compression and twisting
Big carrying capacity
New design of anti-bursting construction at the end
Beyond space limitation

Boat Launching Rubber Airbag Application

Ship launching and upgrading
Ship salvage
Weight moving & lifting
Caissons lifting and floating
Pipeline blocking

ship launching airbag

Boat Launching Rubber Airbag Specification

Series	Model	Diameter(m)	Working Pressure(Mpa)	Working Height(m)			Beating Capacity(Ton/m)
Series	Model	Diameter(m)	Working Pressure(Mpa)	0.4D	0.5D	0.6D	0.4D	0.5D	0.6D
S1	S10	0.8	0.20	0.32	0.40	0.48	15.1	12.6	10.0
		1	0.16	0.40	0.50	0.60	15.1	12.6	10.0
		1.2	0.14	0.48	0.60	0.72	15.8	13.2	10.6
		1.5	0.11	0.60	0.75	0.90	15.5	13.0	10.4
	S11	0.8	0.19	0.32	0.40	0.48	14.3	11.9	9.5
		1	0.15	0.40	0.50	0.60	14.1	11.8	9.4
		1.2	0.13	0.48	0.60	0.72	14.7	12.2	9.8
		1.5	0.10	0.60	0.75	0.90	14.1	11.8	9.4
	S12	0.8	0.24	0.32	0.40	0.48	18.1	15.1	12.1
		1	0.19	0.40	0.50	0.60	17.9	14.9	11.9
		1.2	0.16	0.48	0.60	0.72	18.1	15.1	12.1
		1.5	0.13	0.60	0.75	0.90	18.4	15.3	12.2
		1.8	0.10	0.72	0.90	1.08	17.0	14.1	11.3
S2	S20	1	0.24	0.40	0.50	0.60	22.6	18.8	15.1
		1.2	0.20	0.48	0.60	0.72	22.6	18.8	15.1
		1.5	0.16	0.60	0.75	0.90	22.6	18.8	15.1
		1.8	0.13	0.72	0.90	1.08	22.0	18.4	14.7
		2	0.12	0.80	1.00	1.20	22.6	18.8	15.1
	S21	1	0.27	0.40	0.50	0.60	25.4	21.2	17.0
		1.2	0.23	0.48	0.60	0.72	26.0	21.7	17.3
		1.5	0.18	0.60	0.75	0.90	25.4	21.2	17.0
		1.8	0.15	0.72	0.90	1.08	25.4	21.2	17.0
		2	0.14	0.80	1.00	1.20	26.4	22.0	17.6
	S22	1	0.31	0.40	0.50	0.60	29.2	24.3	19.5
		1.2	0.26	0.48	0.60	0.72	29.4	24..5	19.6
		1.5	0.20	0.60	0.75	0.90	28.3	23.6	18.8
		1.8	0.17	0.72	0.90	1.08	28.8	24.0	19.2
		2	0.15	0.80	1.00	1.20	28.3	23.6	18.8
		2.5	0.12	1.00	1.25	1.50	28.3	23.6	18.8
S3	S30	1	0.35	0.40	0.50	0.60	33.0	27.5	22.0
		1.2	0.29	0.48	0.60	0.72	32.8	27.3	21.9
		1.5	0.23	0.60	0.75	0.90	32.5	27.1	21.7
		1.8	0.19	0.72	0.90	1.08	32.2	26.8	21.5
		2	0.17	0.80	1.00	1.20	32.0	26.7	21.4
		2.5	0.14	1.00	1.25	1.50	33.0	27.5	22.0

For further information free to contact us.
