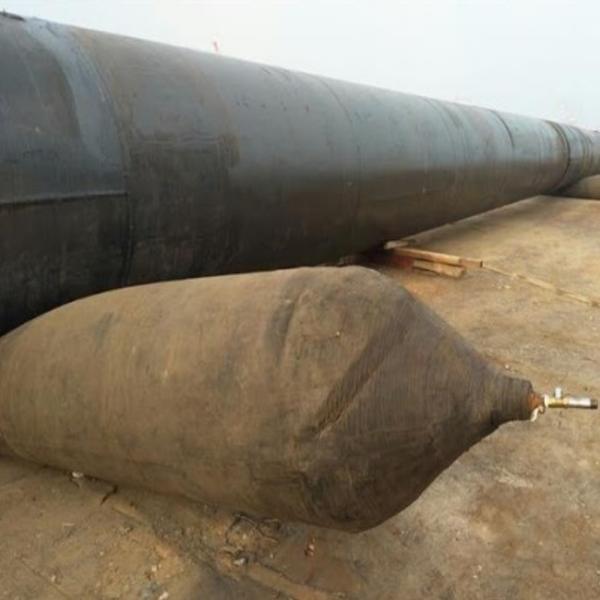

CCS 10 Layers Heavy Lifting Marine Rubber Airbags

Ask Lasest Price
Brand Name :	Jerryborg
Model Number :	*1.2m12m**
Certification :	ISO17357 CCS BV
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 pieces per year
Delivery Time :	10-20 work days
Price :	negotiable

Add to Cart

Product Details
Company Profile

CCS 10 Layers Heavy Lifting Marine Rubber Airbags

10 Layers Heavy Lifting Airbags Marine Rubber Air Bag

Heavy Lifting Airbags Description

Heavy lifting airbags were first invented for ship launching in 1981 in Jinan city of Shandong Province. These airbags are composed of inner reinforced synthetic-tire-cord layers and outer rubber layers in the shape of cylindrical body. They are designed to be a strong structure with high capacity against compression and twisting. Jerryborg is specializing in offering various sizes of heavy lifting airbags upon customer's request.

Heavy Lifting Airbags Application

Ship launching & upgrading
Ship salvage
Weight moving & lifting
Caissons lifting and floating
Pipeline blocking

ship launching airbag

Constructions Of Heavy Lifting Airbags

Structure: outer rubber layer, inner rubber layer, synthetic tire cord layer
Cord layers: 4-10 layers
Shape: a cylindrical body, two heads
Accessories: pressure gauge, pull ring, three-way piece, ball valve, connecting pipe

ship launching airbag

Heavy Lifting Airbags Specification

Series	Model	Diameter(m)	Working Pressure(Mpa)	Working Height(m)			Beating Capacity(Ton/m)
Series	Model	Diameter(m)	Working Pressure(Mpa)	0.4D	0.5D	0.6D	0.4D	0.5D	0.6D
S1	S10	0.8	0.20	0.32	0.40	0.48	15.1	12.6	10.0
		1	0.16	0.40	0.50	0.60	15.1	12.6	10.0
		1.2	0.14	0.48	0.60	0.72	15.8	13.2	10.6
		1.5	0.11	0.60	0.75	0.90	15.5	13.0	10.4
	S11	0.8	0.19	0.32	0.40	0.48	14.3	11.9	9.5
		1	0.15	0.40	0.50	0.60	14.1	11.8	9.4
		1.2	0.13	0.48	0.60	0.72	14.7	12.2	9.8
		1.5	0.10	0.60	0.75	0.90	14.1	11.8	9.4
	S12	0.8	0.24	0.32	0.40	0.48	18.1	15.1	12.1
		1	0.19	0.40	0.50	0.60	17.9	14.9	11.9
		1.2	0.16	0.48	0.60	0.72	18.1	15.1	12.1
		1.5	0.13	0.60	0.75	0.90	18.4	15.3	12.2
		1.8	0.10	0.72	0.90	1.08	17.0	14.1	11.3
S2	S20	1	0.24	0.40	0.50	0.60	22.6	18.8	15.1
		1.2	0.20	0.48	0.60	0.72	22.6	18.8	15.1
		1.5	0.16	0.60	0.75	0.90	22.6	18.8	15.1
		1.8	0.13	0.72	0.90	1.08	22.0	18.4	14.7
		2	0.12	0.80	1.00	1.20	22.6	18.8	15.1
	S21	1	0.27	0.40	0.50	0.60	25.4	21.2	17.0
		1.2	0.23	0.48	0.60	0.72	26.0	21.7	17.3
		1.5	0.18	0.60	0.75	0.90	25.4	21.2	17.0
		1.8	0.15	0.72	0.90	1.08	25.4	21.2	17.0
		2	0.14	0.80	1.00	1.20	26.4	22.0	17.6
	S22	1	0.31	0.40	0.50	0.60	29.2	24.3	19.5
		1.2	0.26	0.48	0.60	0.72	29.4	24..5	19.6
		1.5	0.20	0.60	0.75	0.90	28.3	23.6	18.8
		1.8	0.17	0.72	0.90	1.08	28.8	24.0	19.2
		2	0.15	0.80	1.00	1.20	28.3	23.6	18.8
		2.5	0.12	1.00	1.25	1.50	28.3	23.6	18.8
S3	S30	1	0.35	0.40	0.50	0.60	33.0	27.5	22.0
		1.2	0.29	0.48	0.60	0.72	32.8	27.3	21.9
		1.5	0.23	0.60	0.75	0.90	32.5	27.1	21.7
		1.8	0.19	0.72	0.90	1.08	32.2	26.8	21.5
		2	0.17	0.80	1.00	1.20	32.0	26.7	21.4
		2.5	0.14	1.00	1.25	1.50	33.0	27.5	22.0

For further information free to contact us.
